Name: Br2 Down The Hole DTH Rock Drill Bit 76mm For Quarry Water Well Borehole Mining Medium Air Pressure Fast Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: BR2
Price: 110 USD
Availability: InStock

Главная страница Продукция Инструменты для ударного бурения

Br2 Down The Hole DTH Rock Drill Bit 76mm For Quarry Water Well Borehole Mining Medium Air Pressure Fast Drilling

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	MIROC
Сертификация:	ISO
Номер модели:	BR2

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	$110
Упаковывая детали:	деревянные ящики
Время доставки:	20-30
Условия оплаты:	Л/К, Д/А, Д/П, Т/Т, западное соединение
Поставка способности:	3000

контакт

Подробное описание продукта

Выделить:

76mm DTH rock drill bit

quarry water well drill bit

medium air pressure rock bit

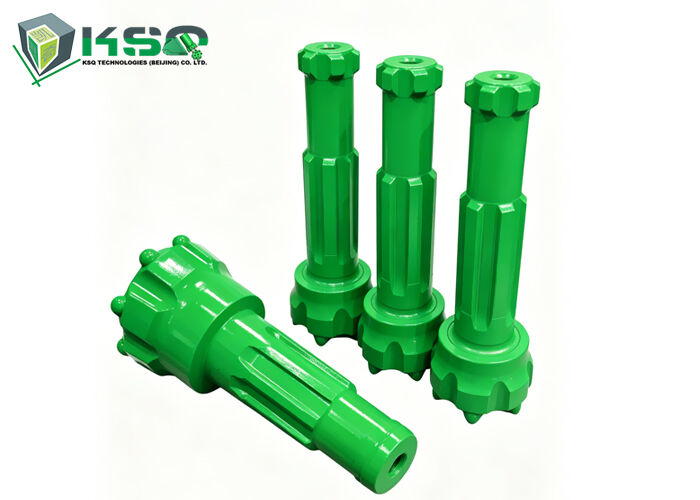

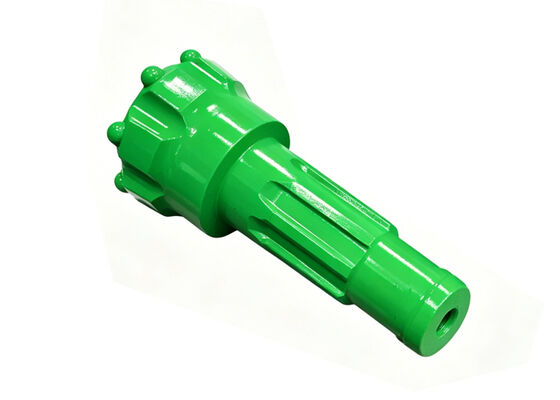

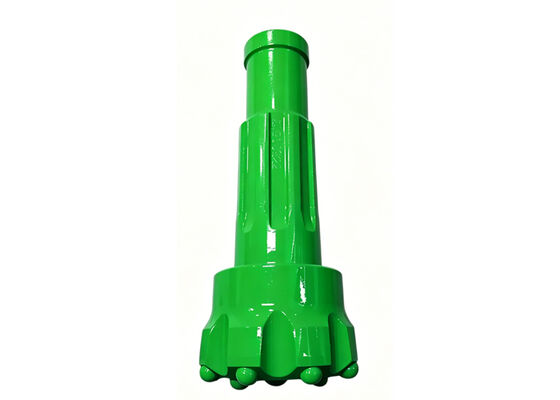

BR2 Down The Hole DTH Rock Drill Bit 76mm

High-performance drilling tool designed for quarry, water well, borehole mining, and medium air pressure fast drilling applications.

Product Overview

The BR2 Shank DTH Button Bit is a high-performance drilling tool specifically engineered for down-the-hole (DTH) hammer applications. Its innovative button-shaped carbide insert profile enhances drilling efficiency and extends bit service life, making it a reliable choice for demanding rock drilling operations.

Key Features & Benefits

High-Quality Alloy Steel Construction - Manufactured from premium alloy steel with exceptional hardness and wear resistance, ensuring consistent penetration across various rock formations
Button-Shaped Carbide Inserts - Strategically placed button profile increases contact area between bit and rock surface, significantly improving drilling speed and energy transfer efficiency
Advanced Heat Dissipation Design - Optimized heat dissipation structure effectively removes heat generated during drilling, reducing thermal fatigue and prolonging bit life
Threaded Connection - Engineered with robust threaded connection to guarantee secure, vibration-resistant fit with drill string, minimizing downtime due to connection failure

Technical Highlights

In DTH drilling, the bit functions as a direct extension of the shank, with the piston striking it directly. This direct energy transfer minimizes energy loss, resulting in a nearly constant penetration rate regardless of hole depth.

Compatibility: The BR2 bit is paired with corresponding DTH hammers based on hole diameter and spline configuration. Customization options include tungsten carbide insert profiles (spherical, ballistic, etc.), face profiles (flat, concave, convex, etc.), and flushing hole arrangements.

Application Range: Suitable for medium to large drilling diameters and capable of operating under high-pressure conditions for deep-hole drilling.

Color Options: Available in green, blue, or as per customer requirements.

Applications

Mining Quarrying Construction Water Well Drilling Geotechnical Engineering

Summary

The BR2 Shank DTH Button Bit combines durable alloy steel construction, efficient button-type carbide inserts, and intelligent heat management to deliver high-performance, long-lasting drilling. It is a trusted solution for professionals seeking consistent results in challenging rock strata.
