Name: T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45 89mm
Price: 89 USD
Availability: InStock

Главная страница Продукция Инструменты для ударного бурения

T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	MIROC
Сертификация:	ISO
Номер модели:	T45 89mm

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	89
Упаковывая детали:	деревянные ящики
Время доставки:	20-30
Поставка способности:	3000

контакт

Подробное описание продукта

Тип:	сверло	Материал:	Карбид и сплав вольфрама
вес (кг):	5,5	Название продукта:	T45 89 мм втягивающаяся бита Цвет
Цвет:	Зеленый, красный или согласно вашему требованию	Продуктивный процесс:	Ковка и термообработка
Тип подключения:	Нить	Тип сплава:	Сферический/полусферический/параболический/конический/баллистический
Тип юбки:	Втягивающаяся юбка	Состояние:	Новый
Выделить:	89mm carbide rock drill bit , retrac thread drill button bit , forged T45 rock drill bit

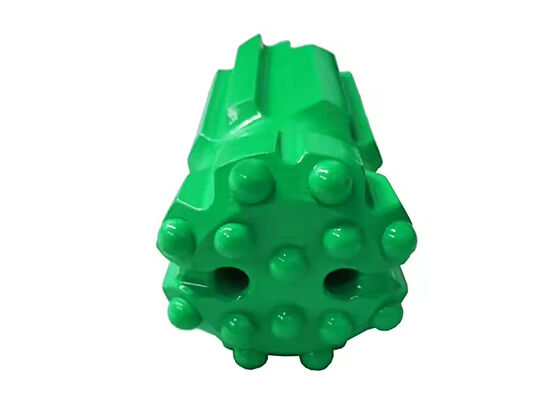

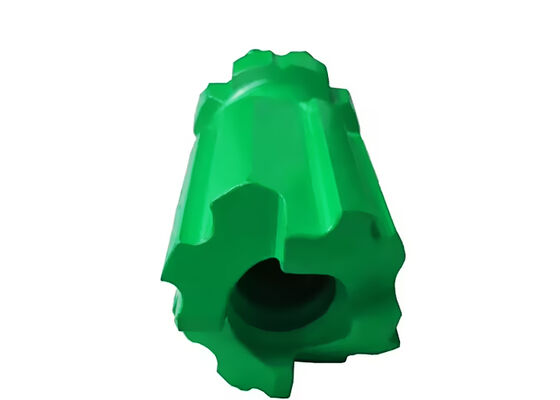

T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit

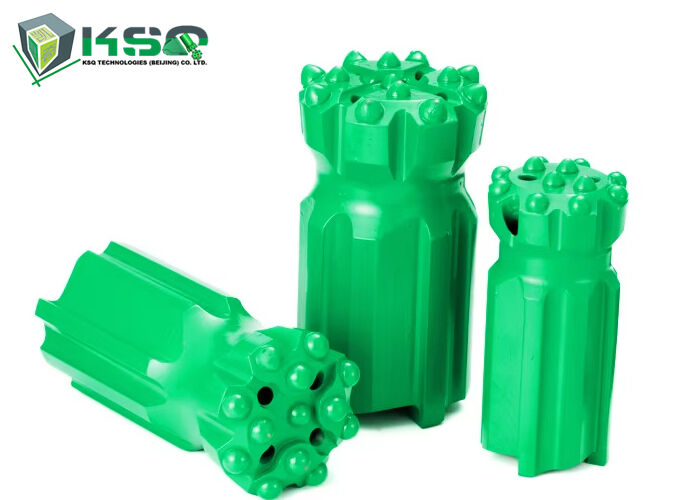

Company Introduction

KSQ Technology (Beijing) Co., Ltd. specializes in the supply of high-quality rock drilling tools for mining, construction, tunneling, and quarrying projects worldwide. Our product range includes DTH hammers and bits, drill pipes, threaded drilling tools, reverse circulation hammers and bits, shank adapters, and coupling sleeves. We are committed to offering competitive advantages through reliable performance and engineering excellence.

Product Overview

This button bit is designed for high-efficiency drilling in demanding rock conditions. Featuring a T45 thread, 89mm diameter, carbide forged construction, and retrac design, it ensures superior wear resistance, easy retraction, and consistent performance in both surface and underground drilling applications.

Key Features & Benefits

T45 Thread - Standardized connection for wide compatibility with drilling equipment
89mm Diameter - Optimized for medium to large hole drilling applications
Carbide Forged Construction - High-grade tungsten carbide inserts for extended service life
Retrac Design - Facilitates easy bit retraction in broken or fractured ground conditions
Versatile Application - Suitable for mining, tunneling, quarrying, and construction drilling

Product Specifications

Product Name	Different rock hardness drilling button bit
Description	For different rock hardness mining, tunneling, quarrying button bit
Material	Alloy steel bar and tungsten carbide bit
MOQ	Trial order 1-5pcs
Body Type	Normal type and retract type
Thread Type	R25, R28, R32, R38, T38, T45, T51, ST58, ST68
Diameter	32mm-152mm
Button Bit Shape	Spherical and Ballistic
Face Shape	Flat shape and Drop-center shape

Technical Specifications Table

Product Name	Bit Diameter (mm)	Bit Diameter (inch)	Carbide Button Front (No. x mm)	Carbide Button Gauge (No. x mm)	Angle	Flushing Hole	Weight (kg)
T45 Retrac Bit	70	2 3/4	3x11, 1x9	6x11	35°	3	2.5
T45 Retrac Bit	70	2 3/4	4x10, 1x10	8x11	35°	4	2.5
T45 Retrac Bit	76	3	4x11	8x11	40°	2	3.2
T45 Retrac Bit	76	3	4x11	8x12	35°	2	3.2
T45 Retrac Bit	76	3	3x11, 1x11	6x13	35°	3	3.2
T45 Retrac Bit	76	3	4x11, 1x11	8x11	35°	4	3.2
T45 Retrac Bit	76	3	4x11, 1x11	8x12	35°	4	3.2
T45 Retrac Bit	89	3 1/2	4x13	8x13	40°	2	5.4
T45 Retrac Bit	89	3 1/2	6x11	8x12	35°	2	5.4
T45 Retrac Bit	89	3 1/2	3x11, 2x11	8x13	35°	3	5.4
T45 Retrac Bit	89	3 1/2	4x11, 1x11	8x12	35°	4	5.4
T45 Retrac Bit	89	3 1/2	4x13, 1x13	8x13	35°	4	5.4
