Name: R32-41mm Thread Button Bits for Rock Drill Machine Drifter Rod Mining Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R32-41 мм
Price: 508.50 USD
Availability: InStock

Главная страница Продукция Инструменты для ударного бурения

R32-41mm Thread Button Bits for Rock Drill Machine Drifter Rod Mining Bit

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	MIROC
Сертификация:	ISO
Номер модели:	R32-41 мм

Оплата и доставка Условия:

Количество мин заказа:	1
Время доставки:	20-30
Поставка способности:	3000

контакт

Подробное описание продукта

Поверхностная обработка:	Распылитель	Процесс производства:	Штамповка
Материал:	Карбид вольфрама	Нить:	R32
Цвет:	Индивидуально	Использование:	Хорошо бурение, металлическое бурение, бурение каменной кладки, бурение карьеров, шахтное бурение
Стиль кнопки:	Сферические, параболические, баллистические кнопки	Спецификация:	Диаметр 41 мм
Выделить:	R32-41mm thread button bits , rock drill machine drifter rod bits , mining bit with R32 thread

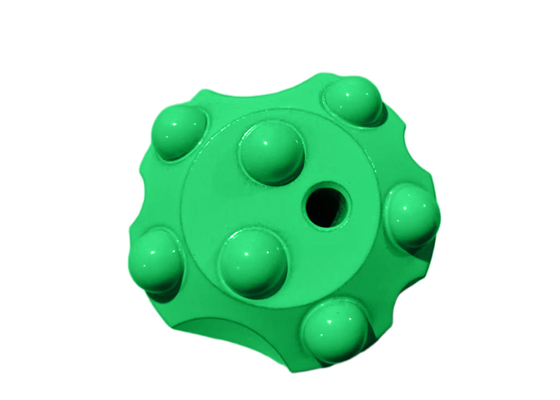

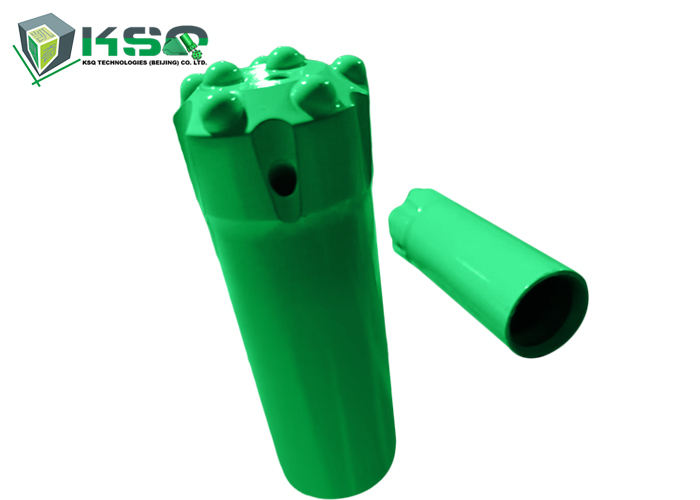

R32-41mm Thread Button Bits for Rock Drill Machine Drifter Rod Mining Bit

Product Description

The button bit has higher technical content, longer drilling time and higher drilling efficiency. Button bit has large bearing capacity, good wear resistance and fast drilling speed. According to the different carbide teeth, the tooth shape can be divided into hemispherical, conical and parabolic buckles and other types.

It is made of high-quality steel raw materials through quenching and tempering treatment to improve the hardness and toughness of the product. It is widely used in granite and marble quarries, gold mines, railways, tunnels, etc., suitable for fixed (short hole) and blasting drilling systems. High cost performance. The delivery is timely, and the design, product quantity and button quantity can be delivered according to customer requirements.

About our Products

All button bits raw material produced
Simple structure and not broken easily
Hole straightness, high speed and deep hole drilling
Good flushing effect to ensure high drilling rate

Product Range

Product Name: R32 Drill Bits

Thread type: R32

Head diameters: 41mm ~ 76mm

Face designs: flat face

Carbide shape: Dome, Ballistic, Semi-Ballistic

Skirt designs: Standard, Retrac

Specification of Button Bit

Thread	Diameter range	Skirt Design	Face Design	Button Design
R22	35 - 45mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R25	33 - 57mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R28	36 - 51mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R32	41 - 89mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
R35	48 - 51mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
R38	64 - 102mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T38	57 - 102mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T45	70 - 127mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T51	76 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T60	89 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
ST58	89 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
GT60	93 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
ST68	102 - 152mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
